    1976 T140V does the oil in frame breather vent up at the neck connect with the primary crankcase breather (T- piece ) before being vented to back of rear mud guard? Can't find any definitive info or picture on this.

  2. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,869
    1,000
    Southcoast of the UK Earth
    Breather pipe 83-7154 goes from frame down to T piece 83-1610 that goes on the large rear breather pipe :)

  3. Dennis Schermerhorn

    Dennis Schermerhorn Well-Known Member

    Nov 26, 2018
    83
    68
    Connecticut
    Hey darken, just got a Lucas 2 pin ignition switch, 2 pins 2 terminals on each, but no markings/labels. How can I tell which is battery and which
    is for Pazon electronic ignition. All pins look the same.

  4. Rocker

    Rocker Elite Member

    May 1, 2016
    1,659
    800
    Suffolk
    Trial and error is the method I use:)

    • Funny Funny x 1
  5. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,869
    1,000
    Southcoast of the UK Earth
    Not my best subject lol, use a battery and 2 wires with a bulb in one wire to feed one pin at a time with key in off pos then see if others become live when turning key would be one way and make notes lol

  6. Rocker

    Rocker Elite Member

    May 1, 2016
    1,659
    800
    Suffolk
    That's what I meant:joy::joy::joy:

    • Like Like x 1
  7. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,869
    1,000
    Southcoast of the UK Earth
    All i did was elaborate on your detail :rolleyes:

    • Like Like x 1
    • Funny Funny x 1
  8. Dennis Schermerhorn

    Dennis Schermerhorn Well-Known Member

    Nov 26, 2018
    83
    68
    Connecticut
    Ok, put power to one pin and see if the other is hot. If not reverse. I think that's what you mean...Thx.

  9. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,869
    1,000
    Southcoast of the UK Earth
    Yes live wire to pin and wire with bulb on other pin, using the key on off function will tell you how it's switched :)

  10. Dennis Schermerhorn

    Dennis Schermerhorn Well-Known Member

    Nov 26, 2018
    83
    68
    Connecticut
    It worked, in fact both ways, so I guess you can choose the one you want for power in, and the other becomes power out.

    • Like Like x 2
  11. Dennis Schermerhorn

    Dennis Schermerhorn Well-Known Member

    Nov 26, 2018
    83
    68
    Connecticut

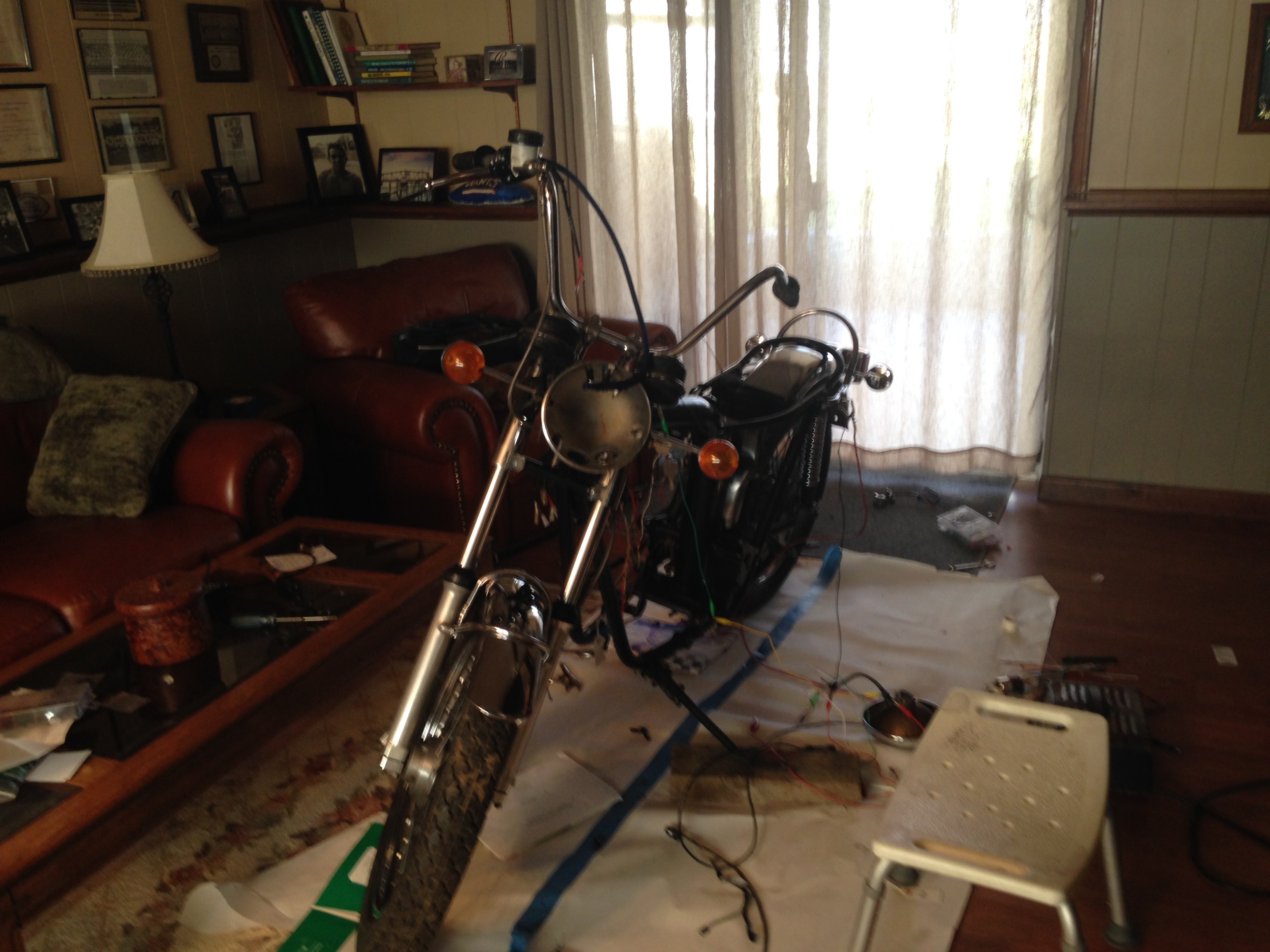

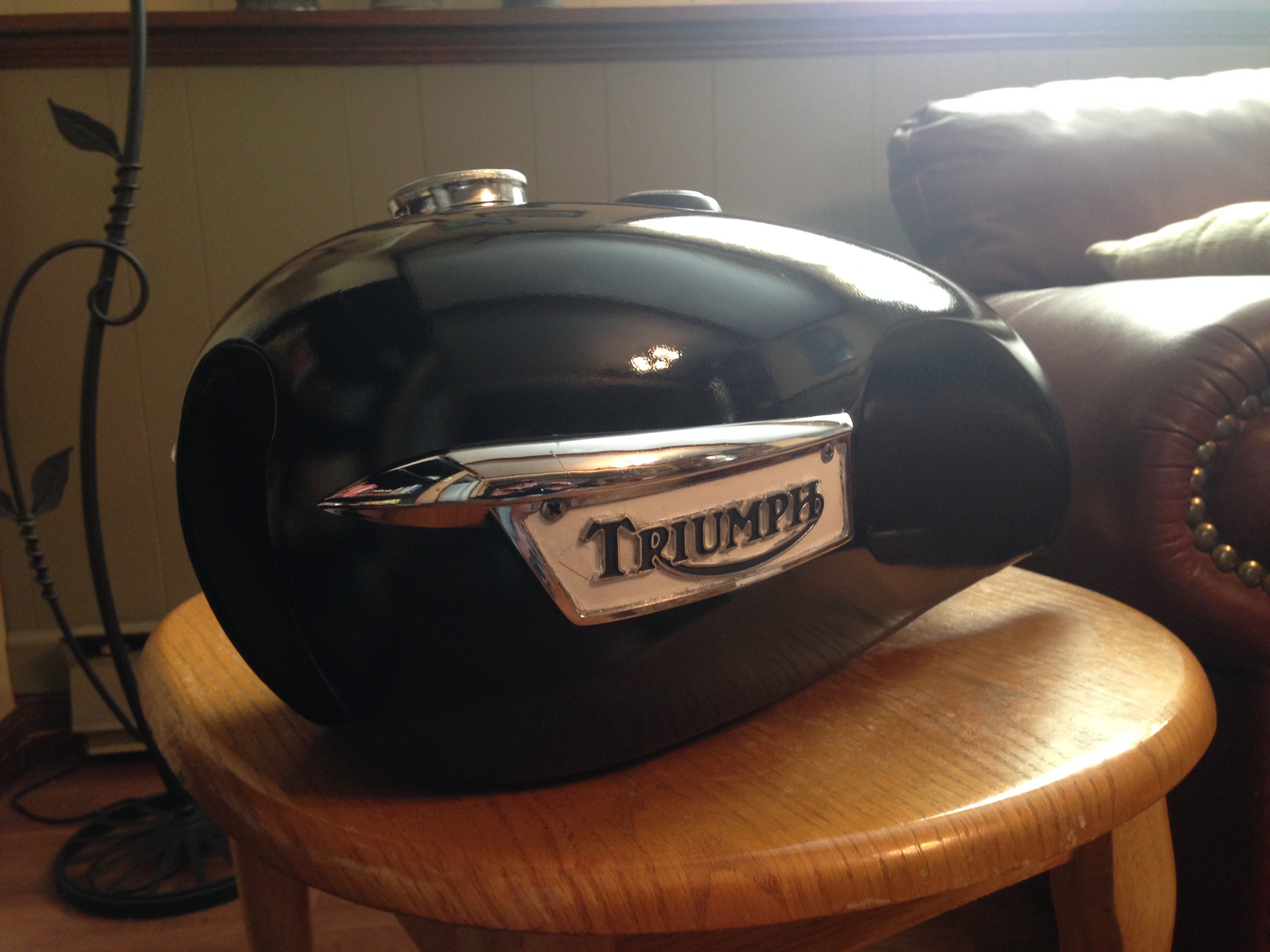

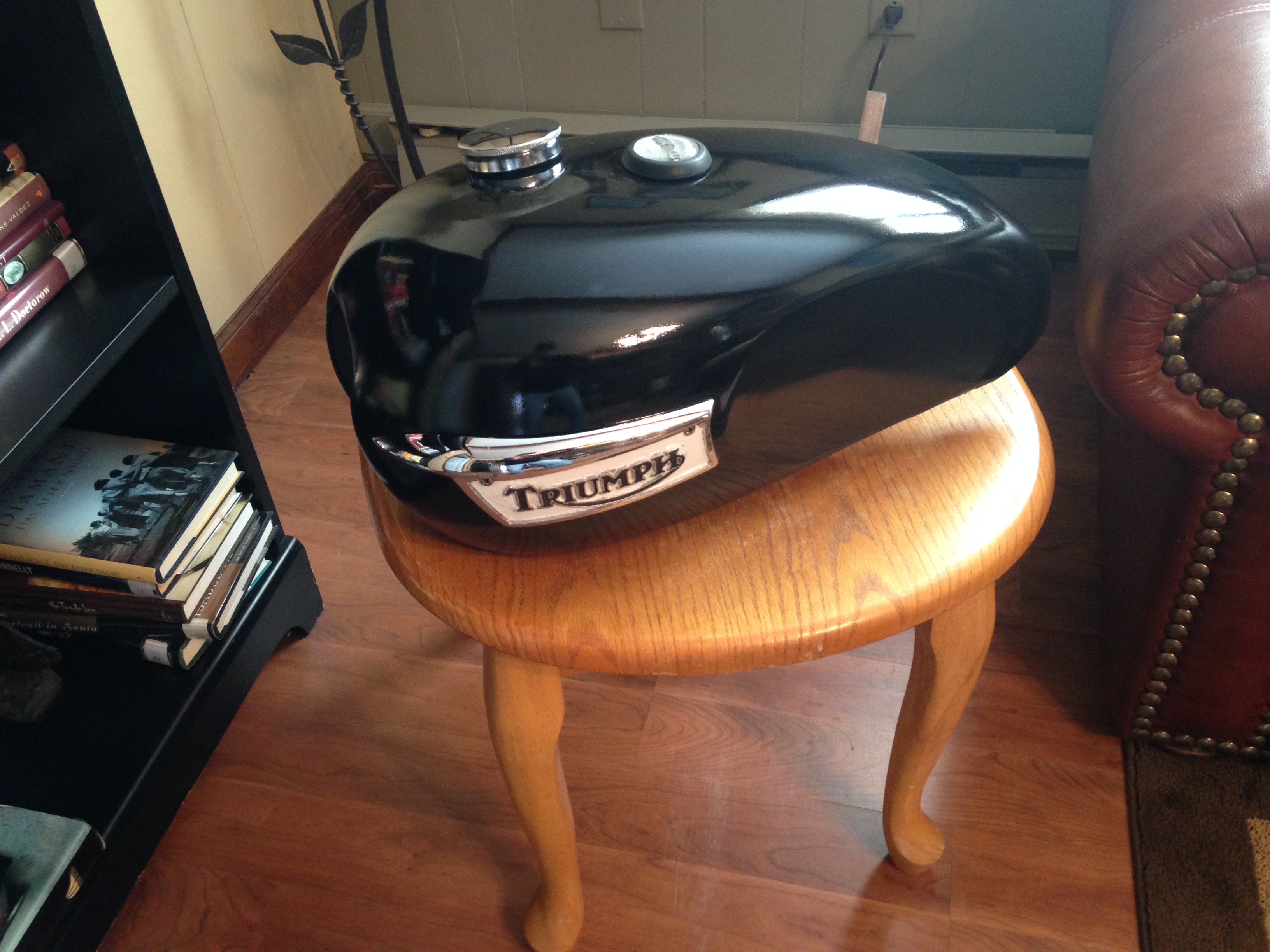

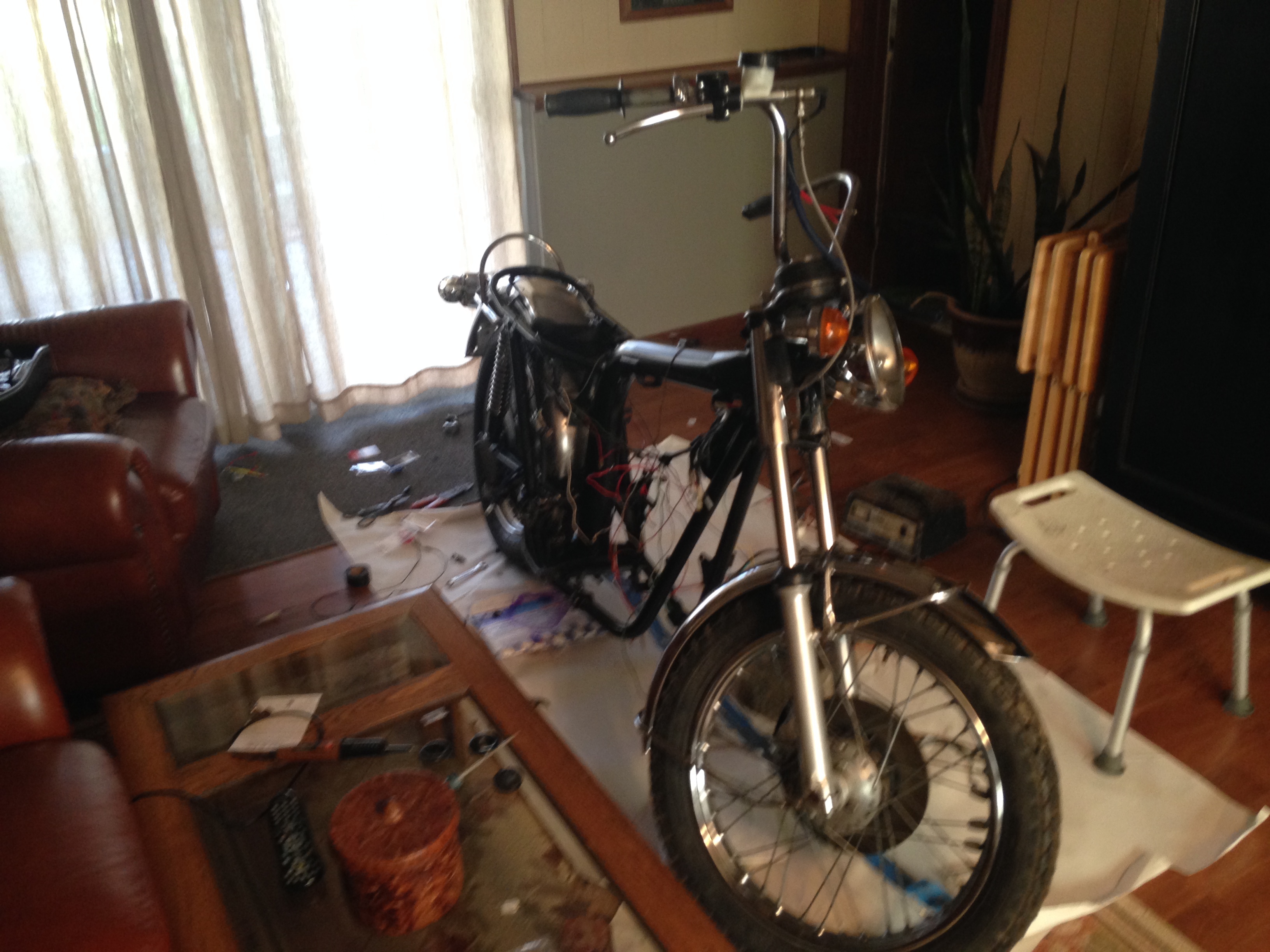

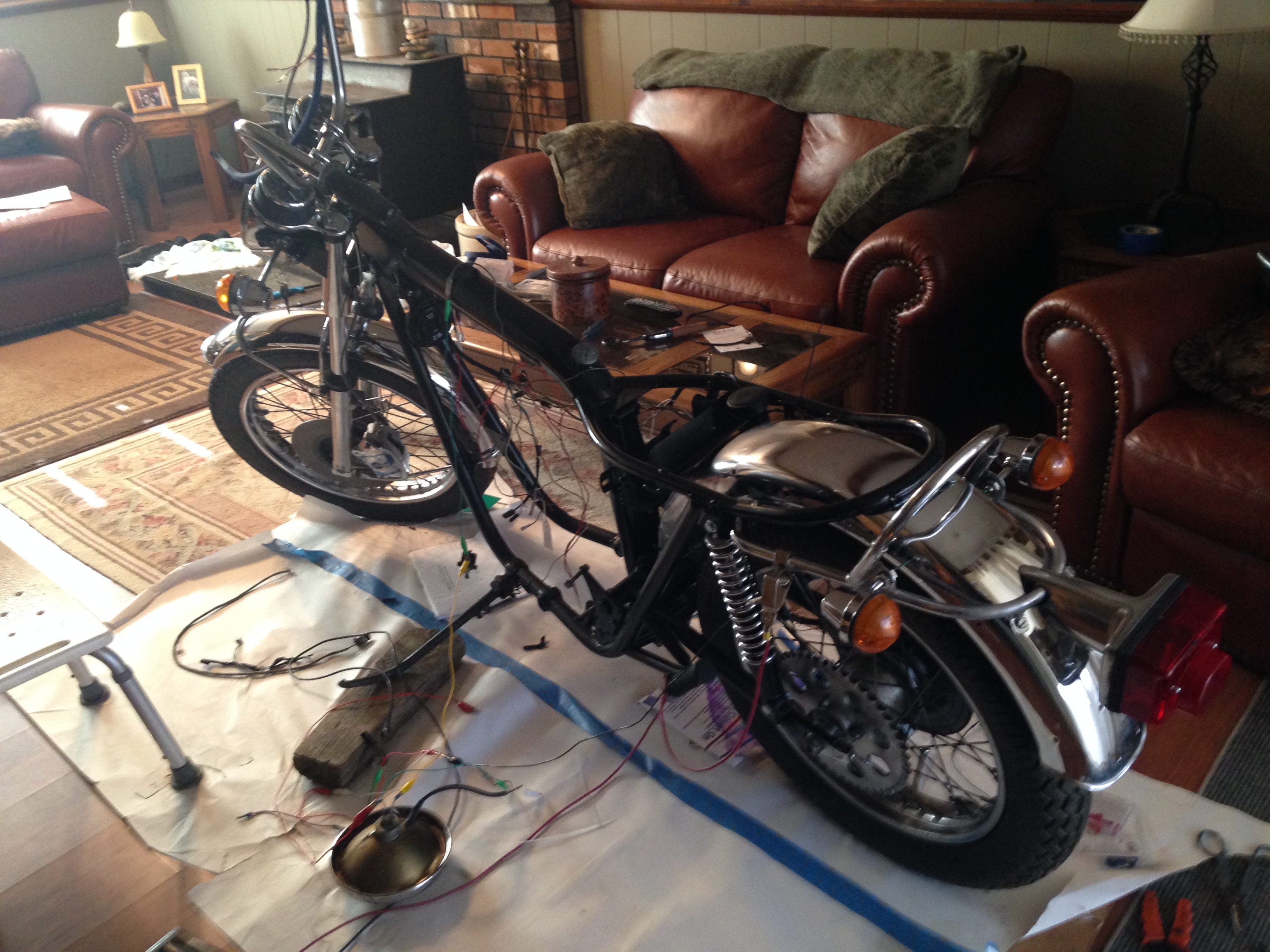

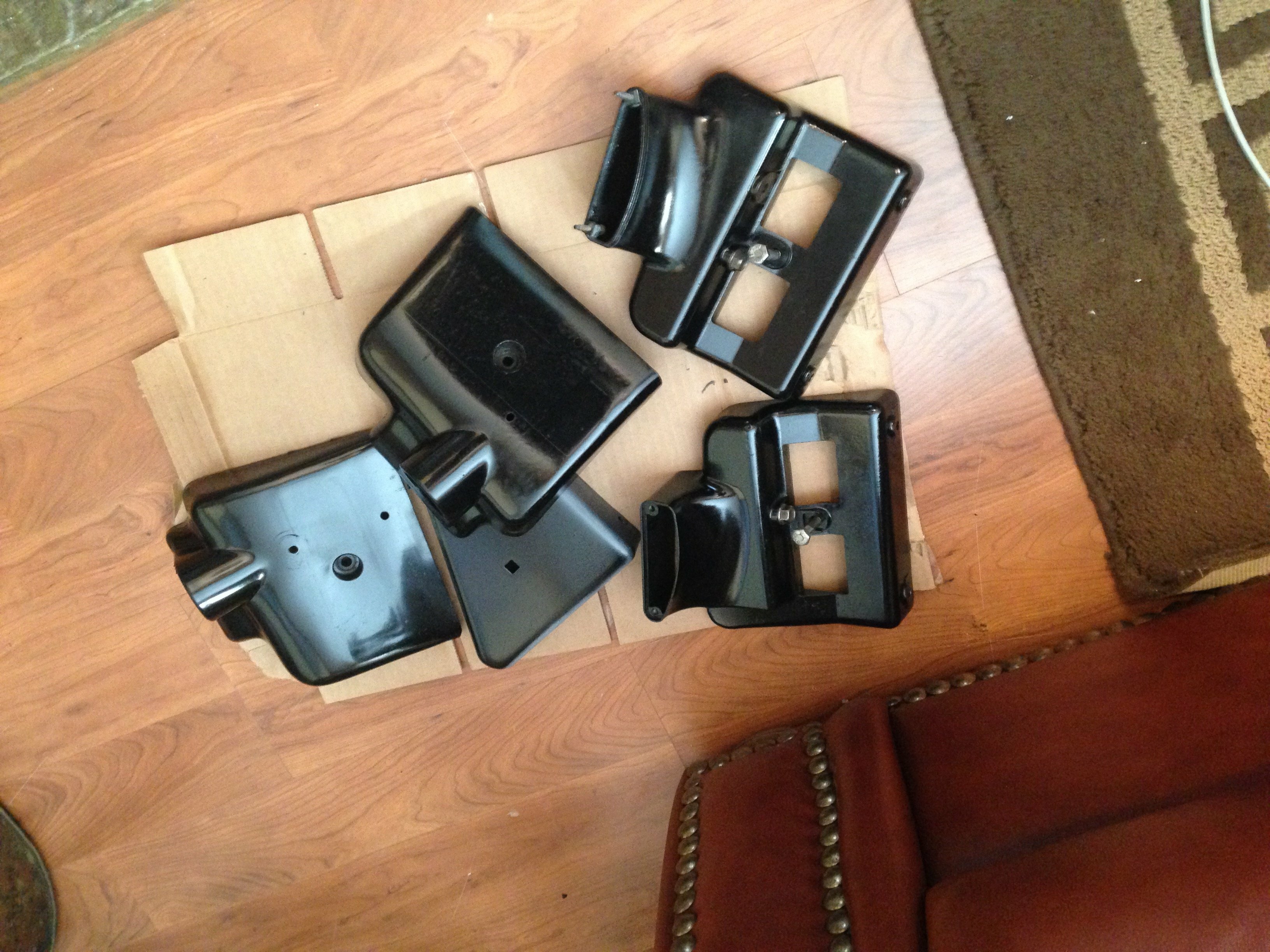

    It's starting to look like a bike. Still waiting for the jugs and head to come back from the machinist, but using the time to do some painting and to try and figure out electricity and wiring ...Brake,taillights, and flashers working, yippie!
