Featured 1953 T100 Rebuild.

Discussion in 'Builds & Projects' started by darkman, Jun 28, 2023.

  1. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,657
    1,000
    Southcoast of the UK Earth
    #1 darkman, Jun 28, 2023

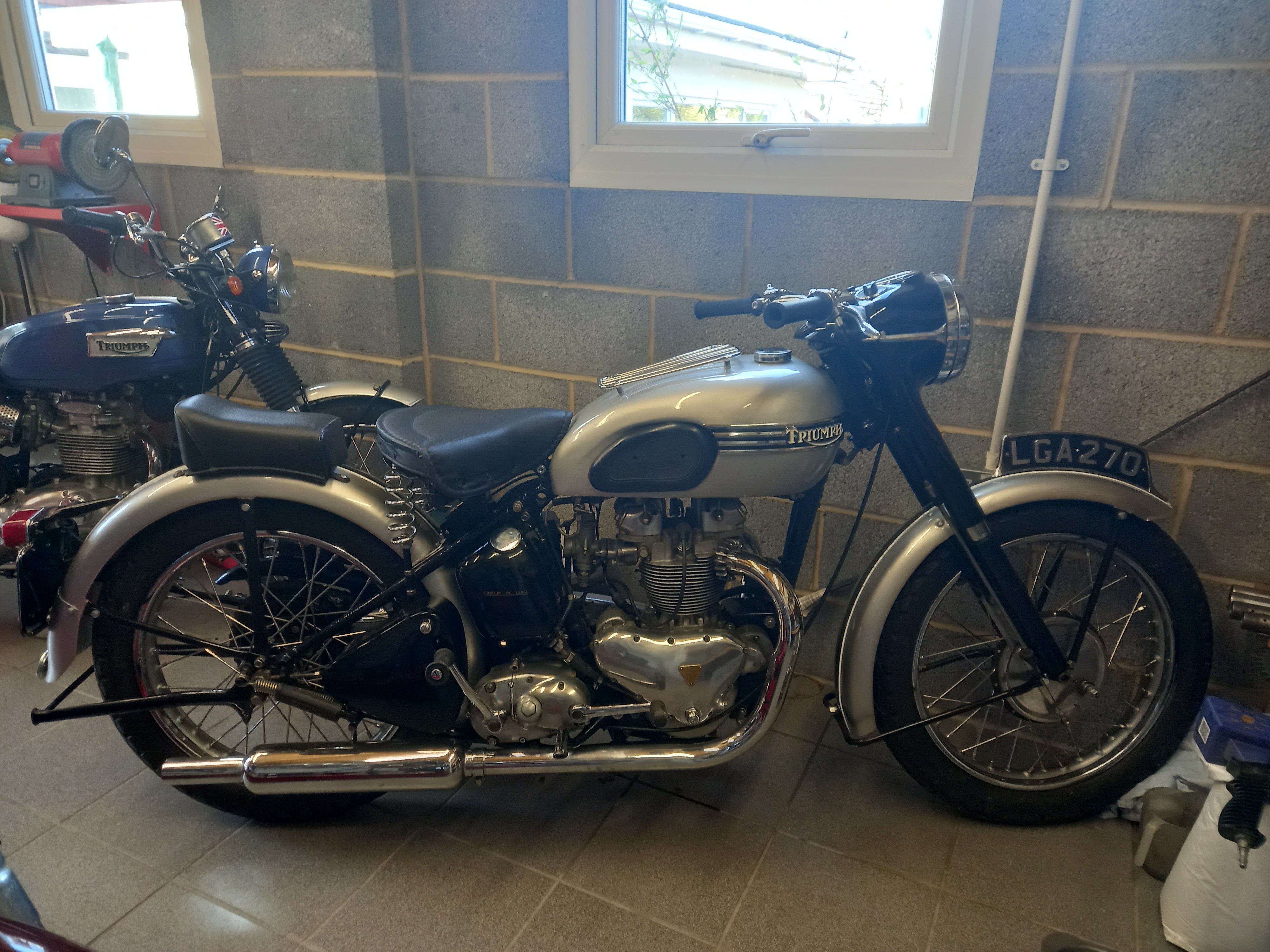

    I have had this T100 for a while now and it's a dog, as Su's 5T is done i would like to ride it this year and do the restoration over time, thoroughly checking it over at the moment and doing any work req so as i can ride it for now. Engine wise its looks like its rideable so have converted timing bush to a seal as in unit construction bikes and fitted a Morgo oil pump, greased bearings and plated a few parts, cleaned out fuel tank and carb, fitted new rear tyre and front later this week and fitted some new bars so far.



    • Like Like x 14
  2. Dartplayer

    Dartplayer Crème de la Crème

    Aug 8, 2018
    7,893
    1,000
    New Zealand
    #2 Dartplayer, Jun 28, 2023
    Enjoy Darkman, another ride in the collection. This could be the wet day ride o_O:p

    • Like Like x 3
    • Funny Funny x 2
    • Agree Agree x 1
  3. Sandi T

    Sandi T It's ride o'clock somewhere!
    Subscriber

    Dec 3, 2018
    24,307
    1,000
    Tucson Arizona
    #3 Sandi T, Jun 29, 2023
    Hurray! Another "Darkman Build". Looking forward to watching you work your motorcycle magic, @darkman. :)

    • Agree Agree x 4
    • Like Like x 1
  4. steve lovatt

    steve lovatt Something else

    May 12, 2014
    9,242
    1,000
    North Yorkshire
    #4 steve lovatt, Jun 29, 2023
    Excellent, looking forward to seeing this progress - lots of photos please! :cool:

    • Agree Agree x 3
    • Like Like x 2
  5. Markus

    Markus Crème de la Crème
    Subscriber

    Oct 28, 2020
    4,656
    1,000
    AUSTRIA
    #5 Markus, Jun 29, 2023
    What a bike!!!! :heart_eyes:
    All the best for your project!

    • Like Like x 2
    • Agree Agree x 1
  6. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,657
    1,000
    Southcoast of the UK Earth
    #6 darkman, Jul 2, 2023

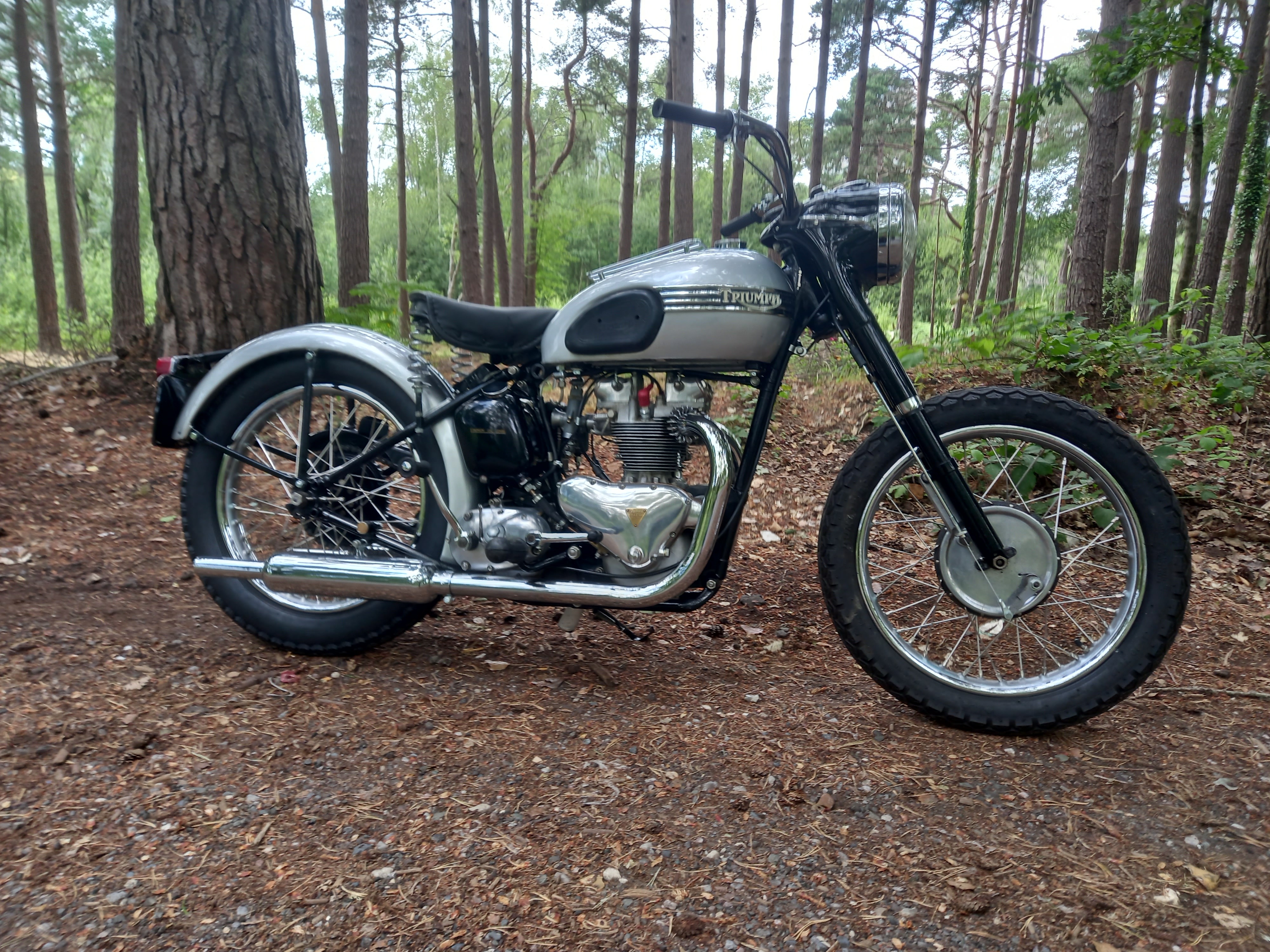

    First ride out on the T100 today and most of the oil leaks are cured, will have to do the rocker shaft oil seals and the pushrod tube seals as they have weeped a little then all good to ride for the rest of the year :)


    • Like Like x 9
    • Love You Love You x 1
  7. Sheila

    Sheila New Member

    Jul 4, 2023
    1
    1
    San Jose
    #7 Sheila, Jul 4, 2023
    Beautiful bike! I recently got a 2014 Bonnie and was told that she needs to be cleaned every 3 to 500 miles. Do you have any suggestions how I can get it up on a stand? What kind of stand is out there that would work? I was going to put a Center stand on it but I can’t find one that fits. Do you have any suggestions!?

    • Like Like x 1
    • Agree Agree x 1
  8. Sheila

    Sheila New Member

    Jul 4, 2023
    1
    1
    San Jose
    #8 Sheila, Jul 4, 2023
    Any suggestions would be so appreciated! I live in San Jose California area

    • Agree Agree x 1
  9. learningtofly

    learningtofly He’s not the Messiah, he’s a very naughty boy!
    Subscriber

    Sep 25, 2018
    2,552
    1,000
    Hertfordshire
    #9 learningtofly, Jul 5, 2023
    If you can't fit a centre stand then you have two options. A paddock stand (requires bobbins of your bike but will allow you to lift the rear wheel off the ground), or a wheel roller that will allow you to turn the wheel without lifting it... something like this.

    • Like Like x 1
    • Agree Agree x 1
  10. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,657
    1,000
    Southcoast of the UK Earth
    #10 darkman, Jul 5, 2023
    • Like Like x 1
  11. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,657
    1,000
    Southcoast of the UK Earth
    #11 darkman, Jul 5, 2023

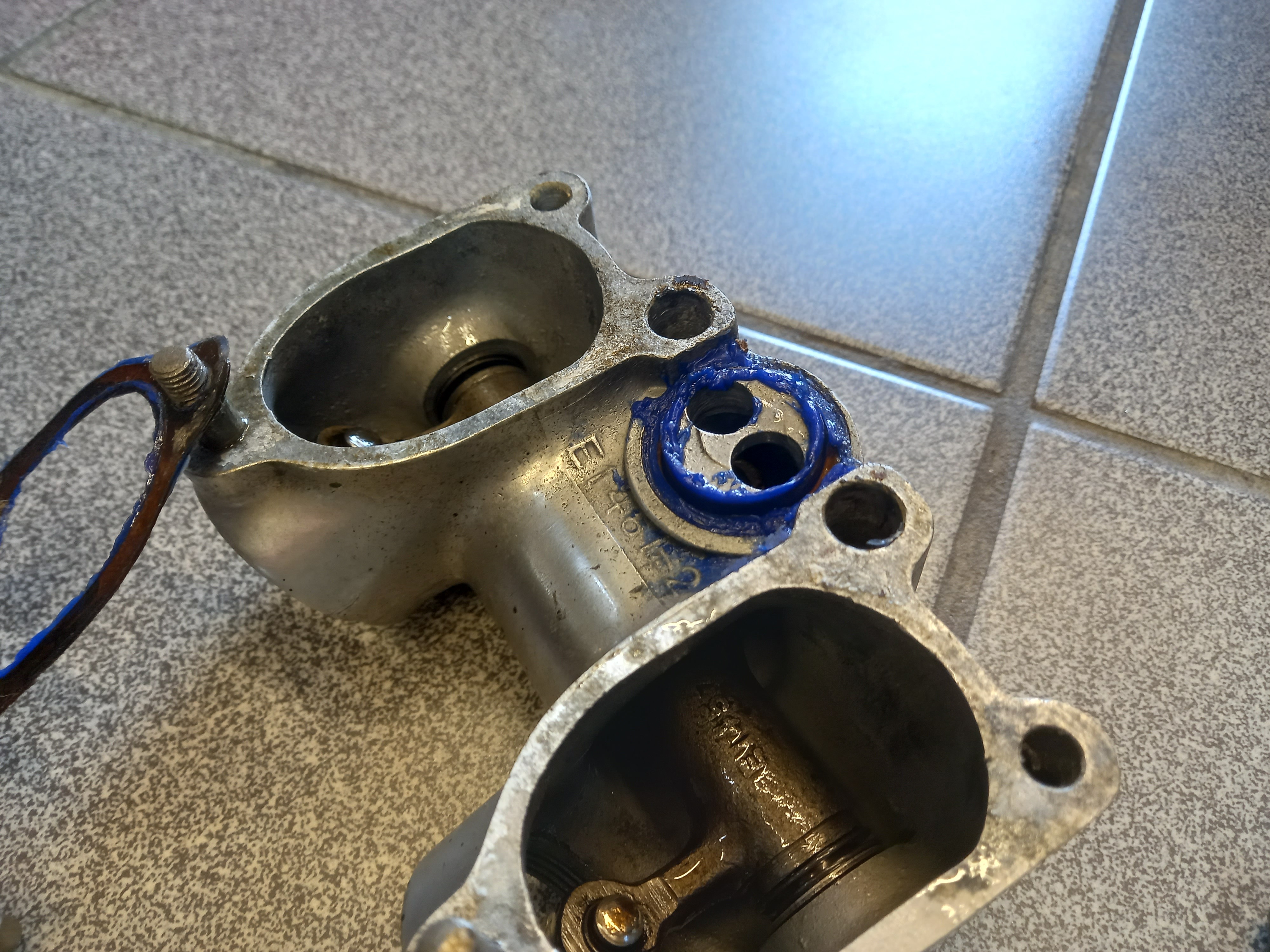

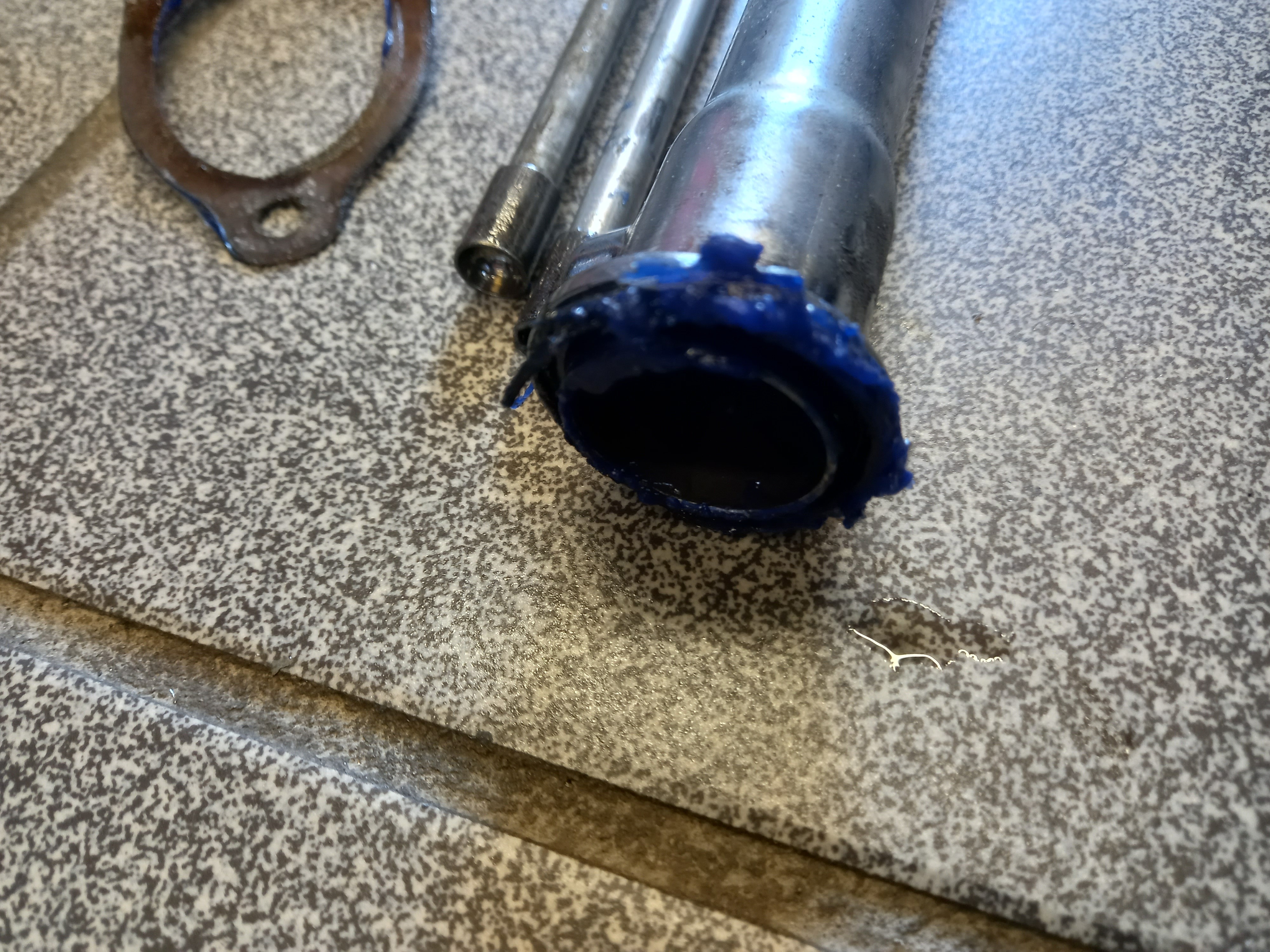

    Thought i had most of the leaks sorted but after a few rides it's obvious the pushrod tubes are leaking, strip top end and clean it all up ready to set the squish on the new seals.



    • Like Like x 1
  12. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,657
    1,000
    Southcoast of the UK Earth
    #12 darkman, Jul 5, 2023

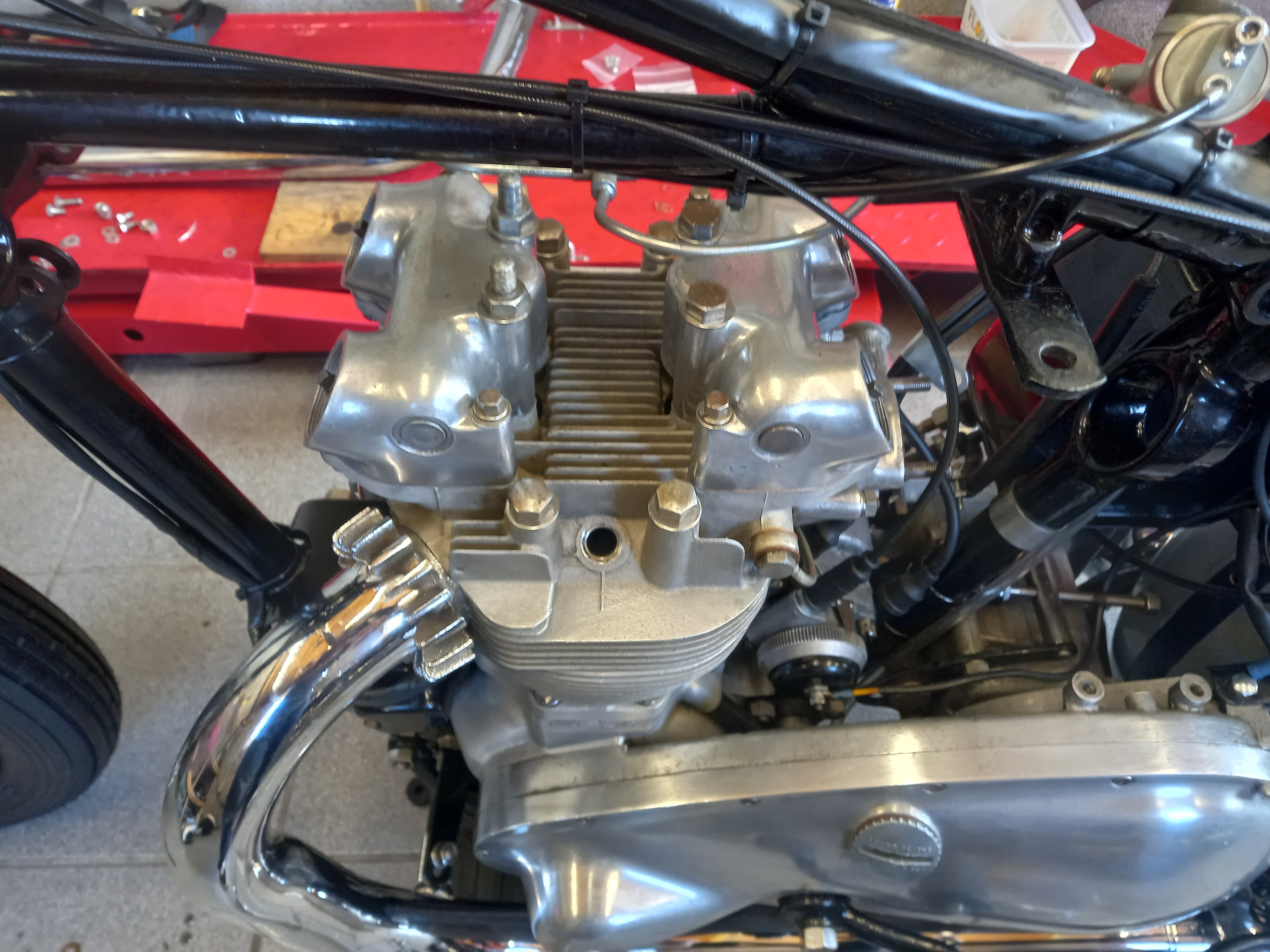

    All done inc a decoke of the head and fitted the new front tyre.


    • Like Like x 3
  13. Sandi T

    Sandi T It's ride o'clock somewhere!
    Subscriber

    Dec 3, 2018
    24,307
    1,000
    Tucson Arizona
    #13 Sandi T, Jul 7, 2023
    "set the squish"...I like that @darkman. :):joy:

    • Like Like x 1
  14. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,657
    1,000
    Southcoast of the UK Earth
    #14 darkman, Jul 7, 2023
    Lol, 1/16" squish of the seals is all it takes to stop the oil seals leaking, no Hylomar req.

    • Like Like x 1
    • Informative Informative x 1
